Included
- One printed dual 2.5-inch drive rack mount
Rack systems
Dual 2.5-Inch SSD / HDD Mount | 10-Inch 1U Rack
SKU: DUAL-25-SATA-10-1USold by 3DStore.ai
New product · No reviews yet$24.99
Mount two bare 2.5-inch SATA SSDs or hard drives side by side in your 10-inch rack. This black PETG mount has a clean, closed front, reinforced trays, and rear-facing cable access. Drives are not included.
• Holds two bare 2.5-inch SATA SSDs/HDDs in 1U • Drives sit on supported trays and fasten with four bottom screws per drive • Solid front panel, reinforced side supports, and ventilation slots under each drive • Open rear for SATA data and power connectors • Printed mount dimensions: 254 × 100 × 43mm (width × depth × height) • Standard bottom mounting pattern: 61.72 × 76.60mm per drive, M3 threads Includes one physical 3D-printed mount in black PETG. Drives, drive screws, rack screws, cage nuts, cables, and rack are not included. Installed-drive photos demonstrate use only. For bare 2.5-inch SATA drives, not external USB enclosures, 3.5-inch drives, or M.2 sticks. Attach the drives from underneath before installing the mount in the rack. Select M3 screws with a length suitable for your drive; this is a fixed mount, not a hot-swap enclosure. Small layer lines and surface variations are normal with 3D-printed parts. Printed by 3DStore.ai. Shipping is calculated at checkout.
At a glance
- Fits
- 2.5-inch SATA SSD / HDD
- Rack size
- 10-inch equipment rack
- Rack space
- 1U
- Overall size
- 254 × 100 × 43 mm (W × D × H)
- Material
- Black PETG
- Color
- Black
About this item
- Two drive trays in a 10-inch 1U rack mount.
- Clean, closed front panel in black PETG.
- Four underside screw positions per drive.

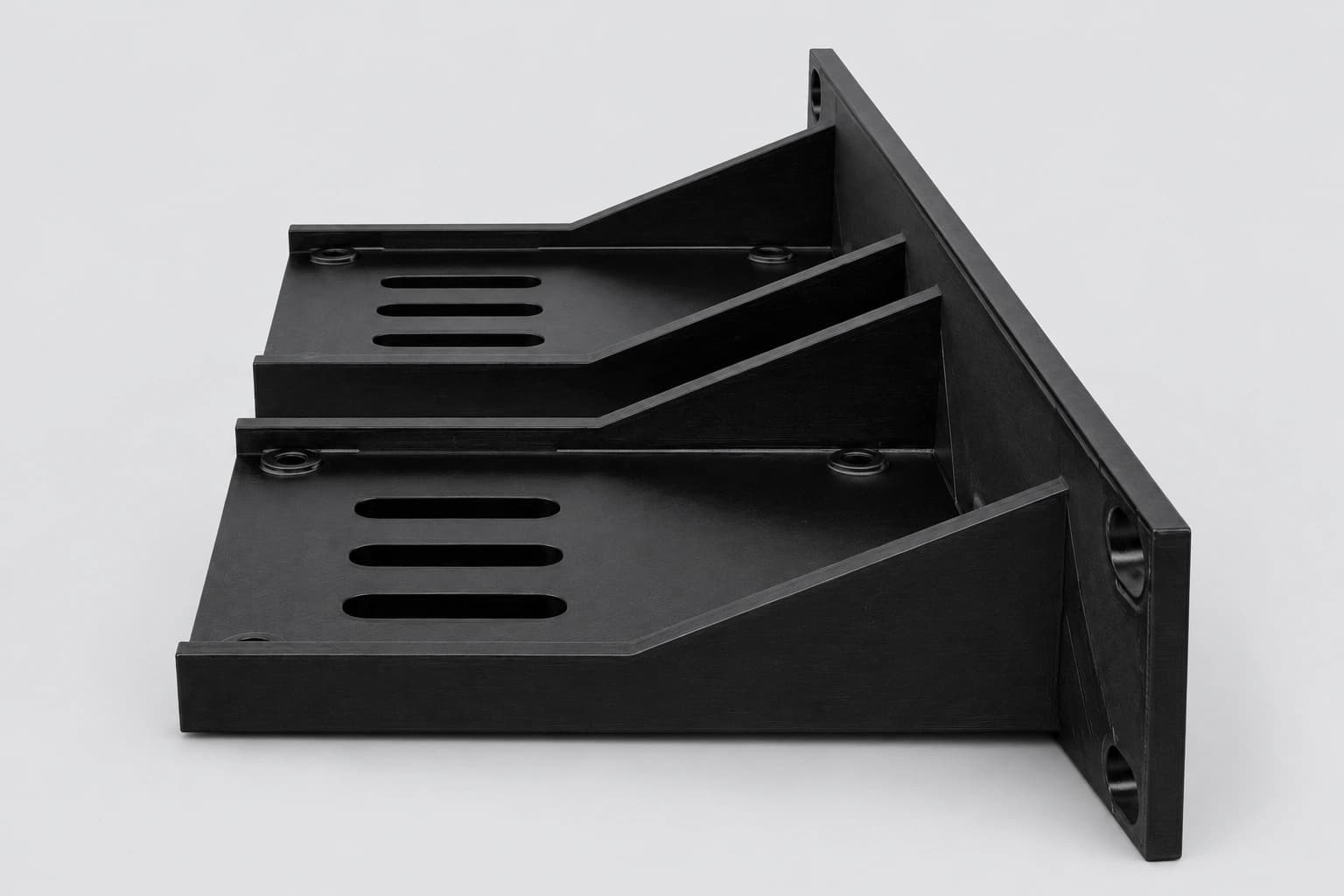

- Reinforced side supports and ventilation slots under each drive.
- Rear-facing SATA data and power access.
Product overview
Product description
Mount two bare 2.5-inch SATA SSDs or hard drives side by side in your 10-inch rack. This black PETG mount has a clean, closed front, reinforced trays, and rear-facing cable access. Drives are not included.
• Holds two bare 2.5-inch SATA SSDs/HDDs in 1U
• Drives sit on supported trays and fasten with four bottom screws per drive

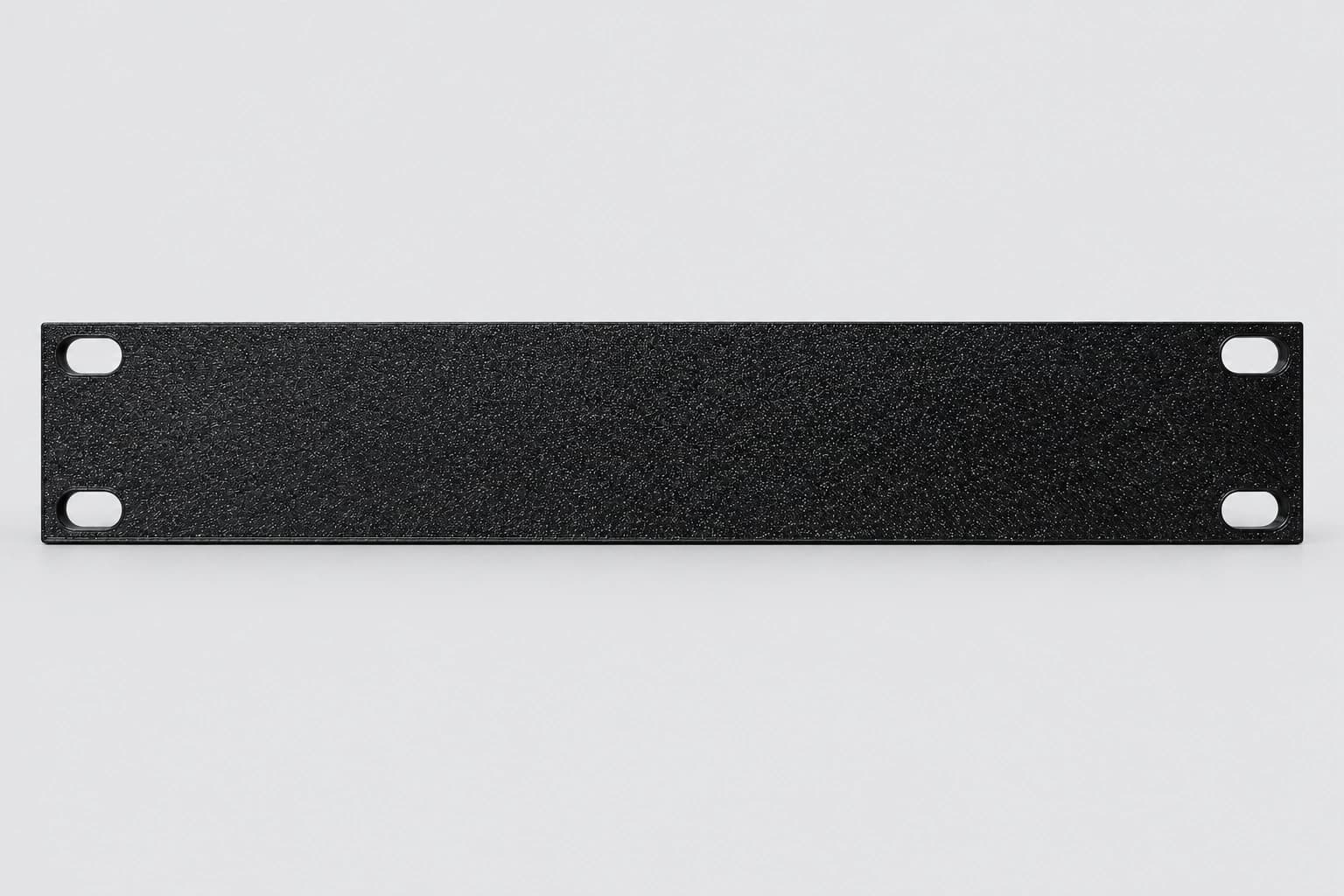

• Solid front panel, reinforced side supports, and ventilation slots under each drive
• Open rear for SATA data and power connectors
• Printed mount dimensions: 254 × 100 × 43mm (width × depth × height)
• Standard bottom mounting pattern: 61.72 × 76.60mm per drive, M3 threads

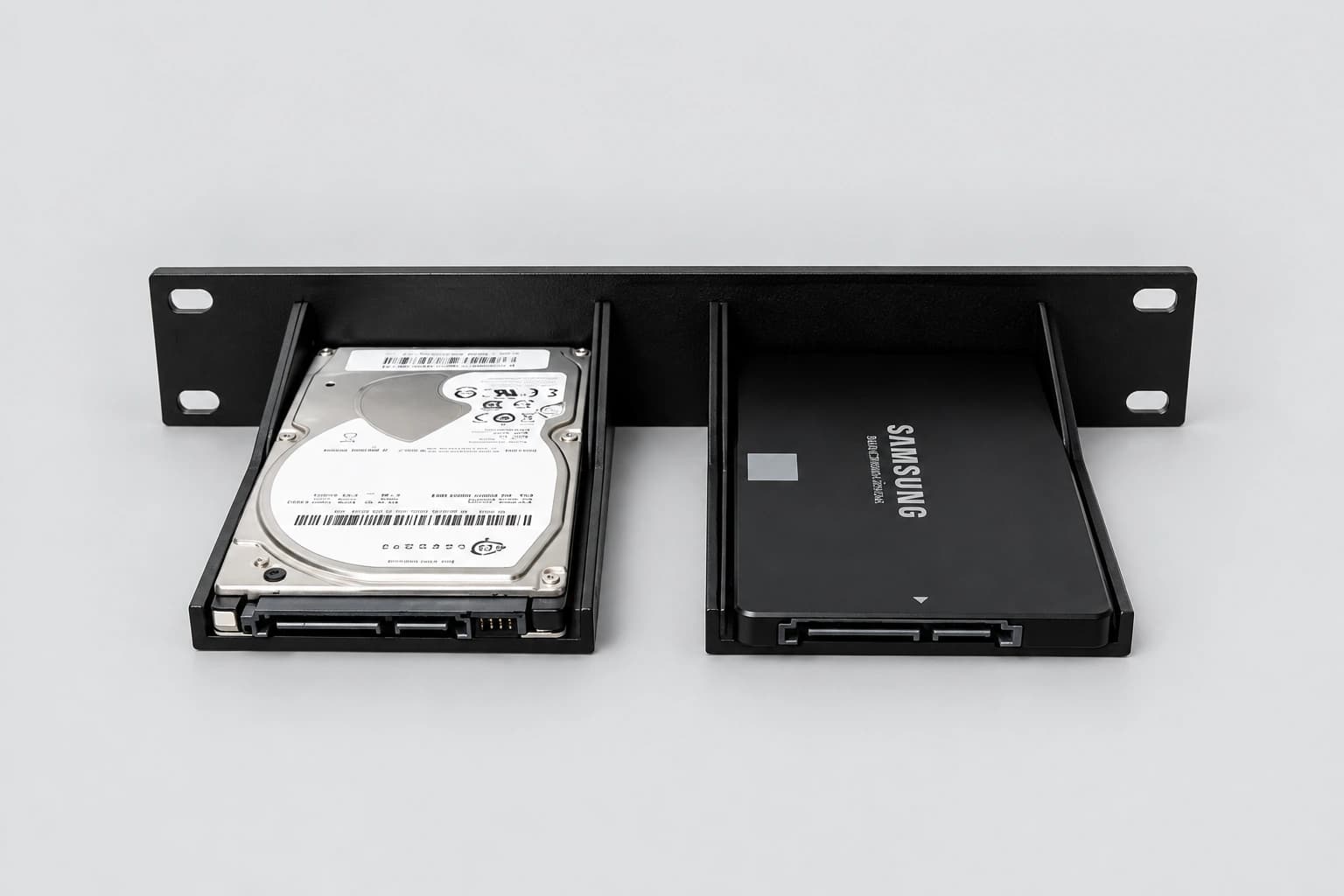

Includes one physical 3D-printed mount in black PETG. Drives, drive screws, rack screws, cage nuts, cables, and rack are not included. Installed-drive photos demonstrate use only.
For bare 2.5-inch SATA drives, not external USB enclosures, 3.5-inch drives, or M.2 sticks. Attach the drives from underneath before installing the mount in the rack. Select M3 screws with a length suitable for your drive; this is a fixed mount, not a hot-swap enclosure.
Small layer lines and surface variations are normal with 3D-printed parts. Printed by 3DStore.ai. Shipping is calculated at checkout.
Technical details
Product information
- Color
- Black
- Material
- Black PETG
- Rack format
- 10-inch equipment rack
- Rack height
- 1U
- Drive capacity
- Two bare 2.5-inch SATA SSDs / HDDs
- Printed mount (W × D × H)
- 254 × 100 × 43 mm
- Bottom screw pattern, per drive
- 61.72 × 76.60 mm; M3 threads
- Dimensions
- 254 × 100 × 43 mm (W × D × H)
- SKU
- DUAL-25-SATA-10-1U
Measure before ordering
Dimensions and fit
254 × 100 × 43 mm (W × D × H)- Rack height
- 1U
- Dimensions
- 254 × 100 × 43 mm (W × D × H)
What's in the box
Here's what comes with it.
Not included
- Drives
- Drive screws
- Rack screws and cage nuts
- SATA cables
- Equipment rack
Questions and answers
Questions before you order?
Read common answers or ask us about your exact device and rack.Are the drives included?
No. You receive one printed mount. Drives, all mounting hardware, cables, and the rack are not included.
How are the drives secured?
Each drive sits on a supported tray and fastens with four M3 screws from underneath. Install the drives before fitting the assembly to the rack. Choose screw length appropriate for your drive.
Which drives does it support?
Bare 2.5-inch SATA SSDs and hard drives with the standard 61.72 × 76.60mm bottom mounting pattern. It is not intended for external USB enclosures, 3.5-inch drives, or M.2 sticks.
Is this a hot-swap enclosure?
No. It is a fixed printed mount with rear access for your own SATA data and power cables. No electronics or backplane are included.
