Quad 2.5-Inch Dell Caddy Rack Mount - 10 Inch 1U

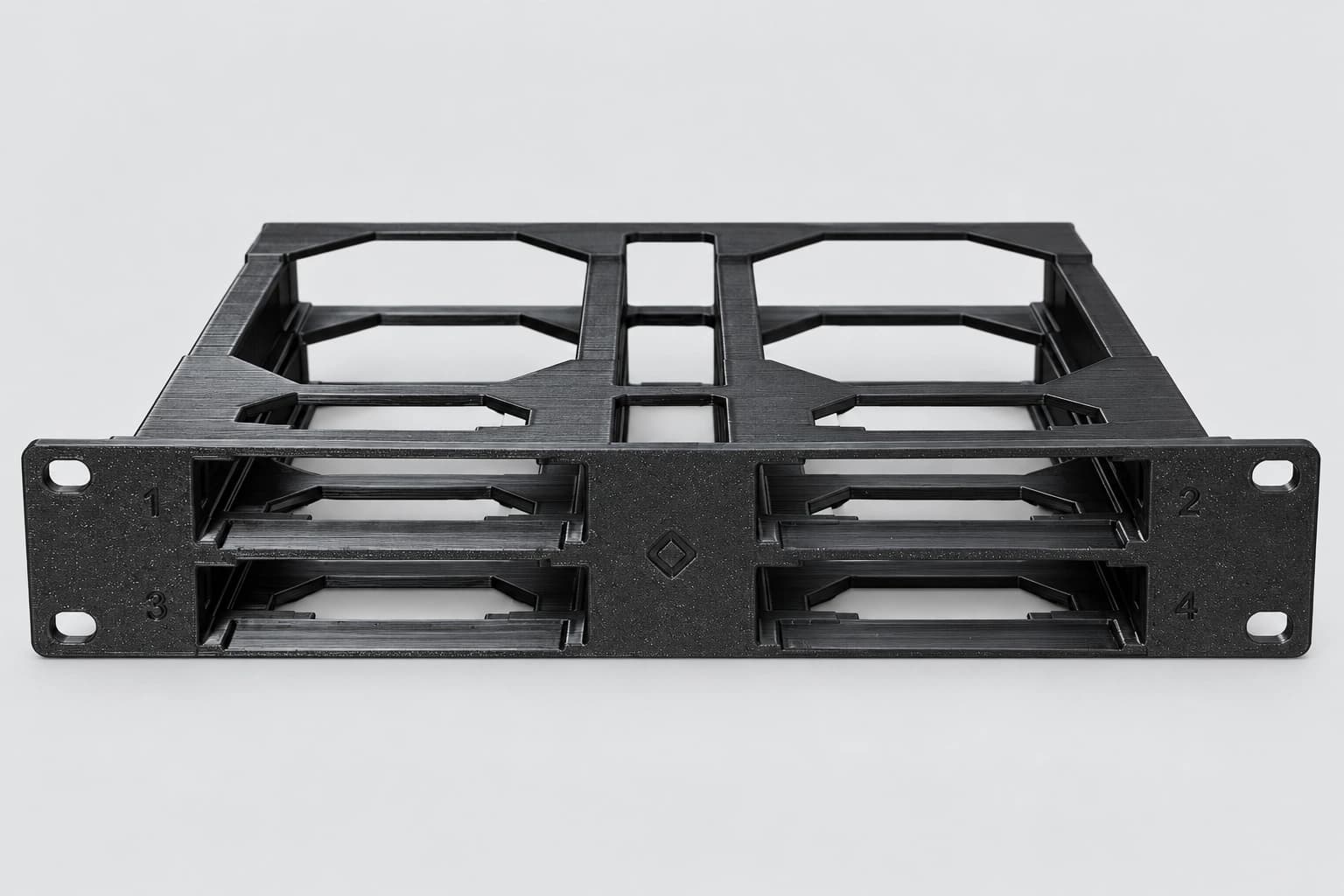

Mount up to four 2.5-inch drives in compatible Dell-style server caddies in a compact 10-inch rack. This black PETG mount has four numbered bays in a two-by-two layout and an open back for direct cable access. MOUNT ONLY: caddies and drives are not included.

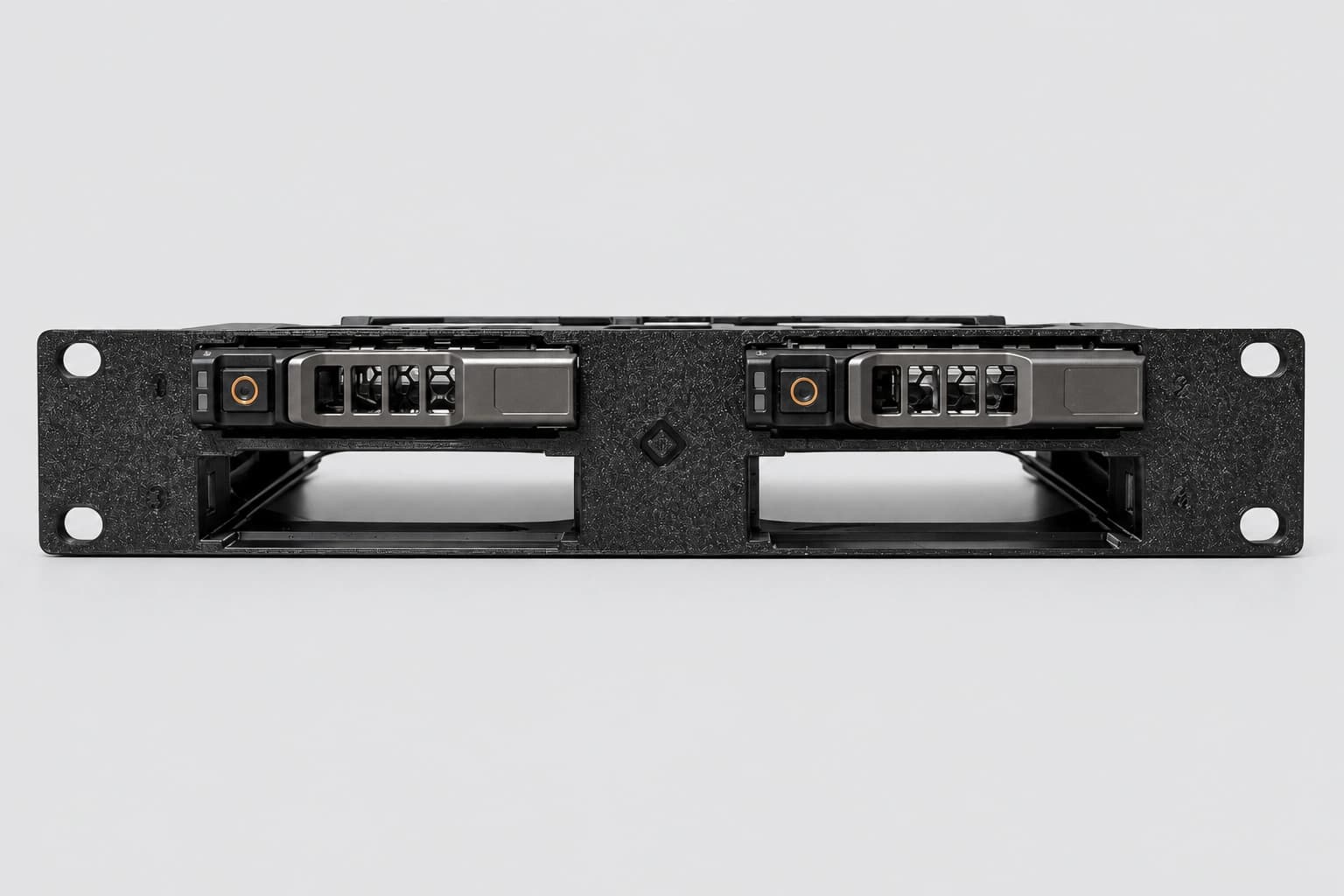

COMPATIBILITY Works with 2.5-inch SAS SATA Server Tray Caddies for Dell PowerEdge R730, R630, T640 and T630 hard drives (08FKXC / 8FKXC-style carriers). Match your caddy style to the photos before ordering; this is not a universal holder for every Dell carrier generation. Caddies are required: bare drives do not mount directly to the printed rails. DETAILS • Four caddy positions in a 10-inch, 1U rack mount • Two columns by two rows, with numbered front bays • One-piece black PETG print with reinforced side walls • Open rear for manually connected drive data and power cables • Ventilated frame and accessible front caddy handles • Printed size: 254 × 131.5 × 44 mm (width × depth × height) INCLUDED One physical 3D-printed rack mount in black PETG. NOT INCLUDED Drive caddies, HDDs/SSDs, caddy/drive screws, rack screws, cage nuts, cables and equipment rack. Installed photos show example use; only two of the four bays are populated in those photos. This is not a digital download. INSTALLATION AND CONNECTIONS Attach each drive to its compatible caddy using the caddy’s matching hardware. Slide the caddy into its bay and check that the handle closes, retains and releases it without force. Use all four rack mounting positions. Leave space behind the mount for connectors and cable bends, and support cable bundles separately. Disconnect rear cables before removing a caddy. This is a mechanical holder, not an electrical hot-swap enclosure. No backplane, fixed connectors or electronics are supplied. SAS/SATA describes the compatible carrier style; use drives, controller and cables that are electrically compatible with each other. Keep ventilation clear and provide airflow suitable for the installed drives. For 10-inch racks, not 19-inch rack spacing. Small layer lines and surface variations are normal with 3D-printed parts. Printed by 3DStore.ai. Independent third-party accessory, not manufactured by Dell.
