Rack systems

Dual 3.5 HDD Shelf - 10 Inch Rack Mount

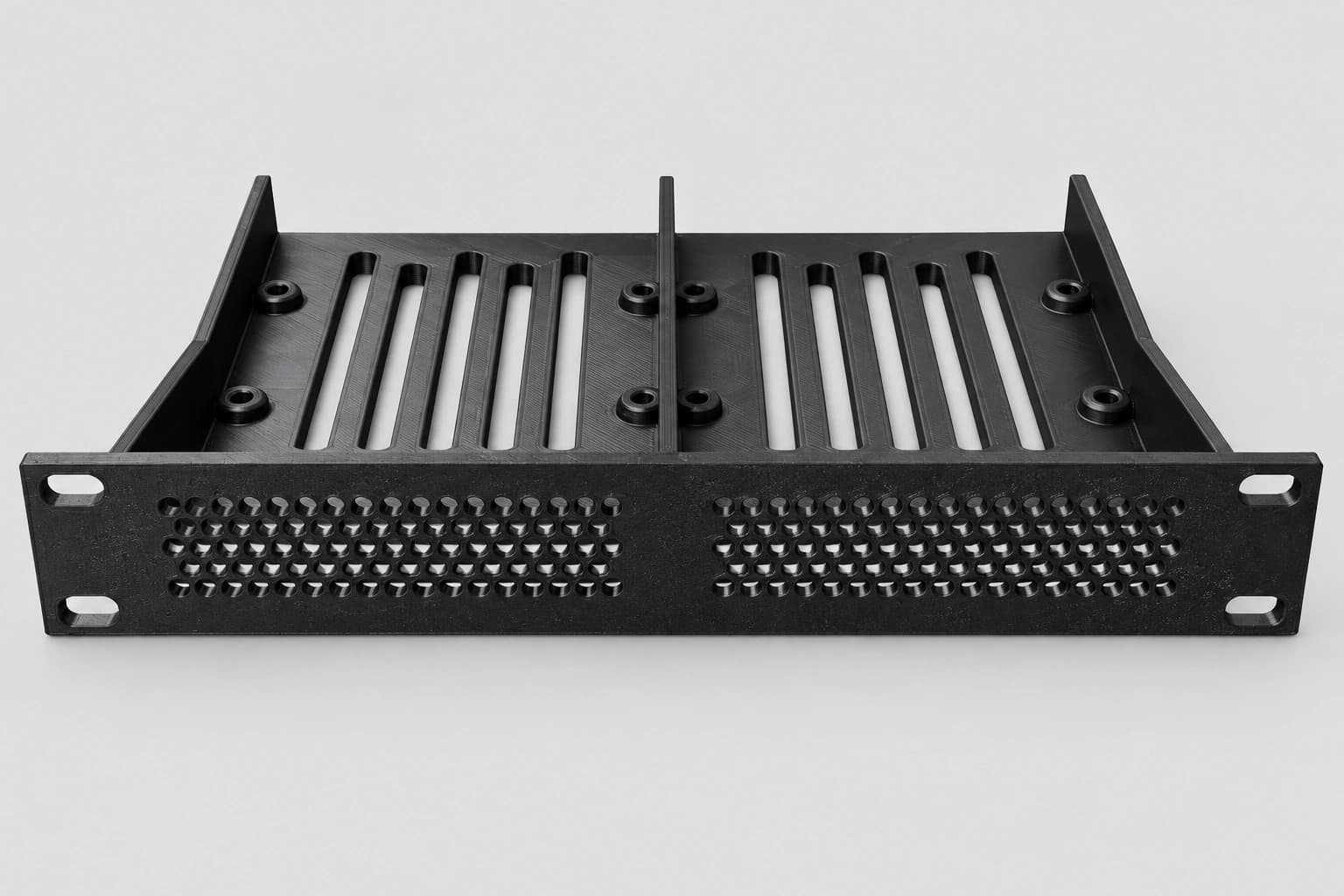

Mount two bare 3.5-inch SATA hard drives side by side in a compact 10-inch rack. This black PETG shelf combines a honeycomb front, reinforced drive trays and open rear access for SATA data and power cables. Drives are not included.

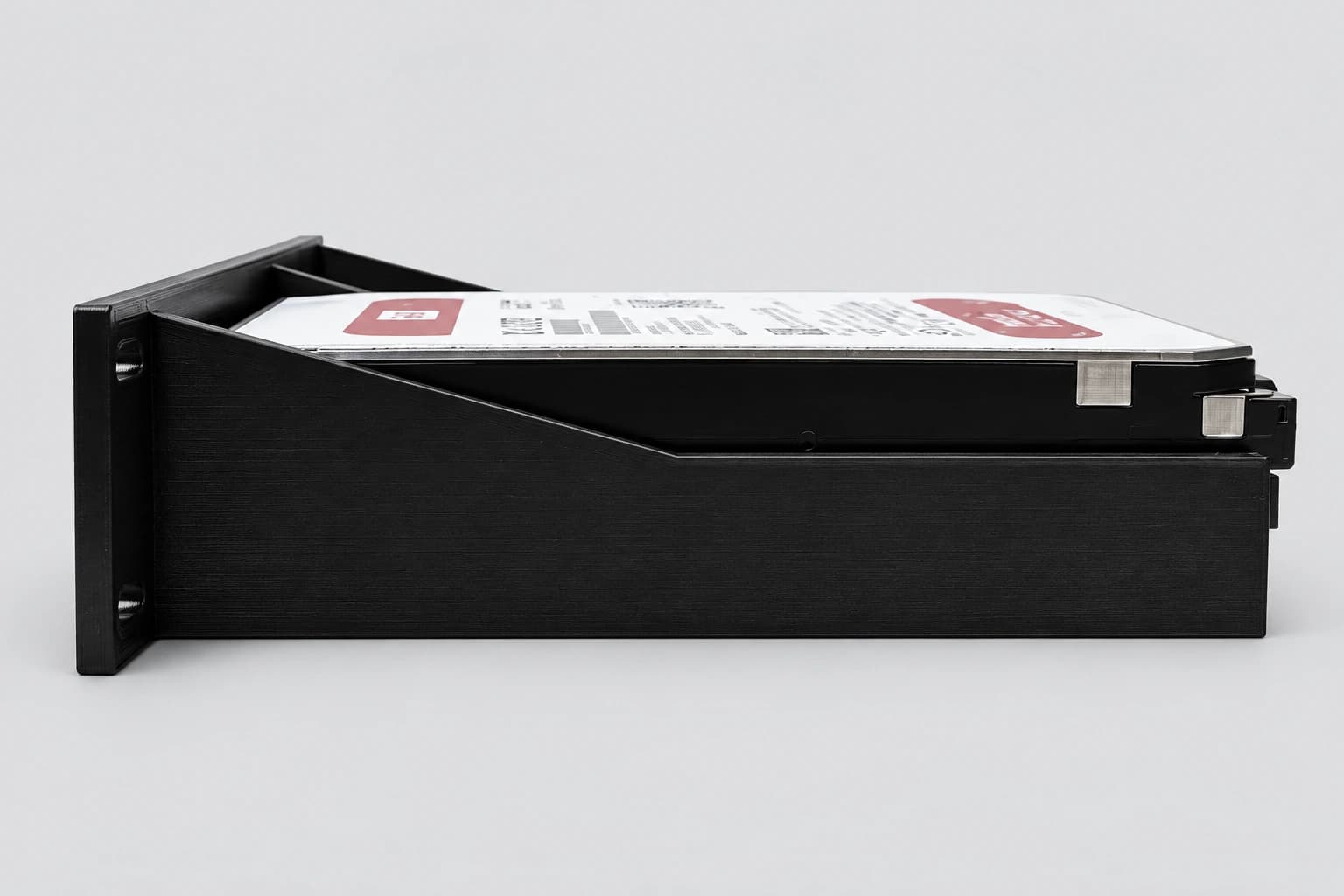

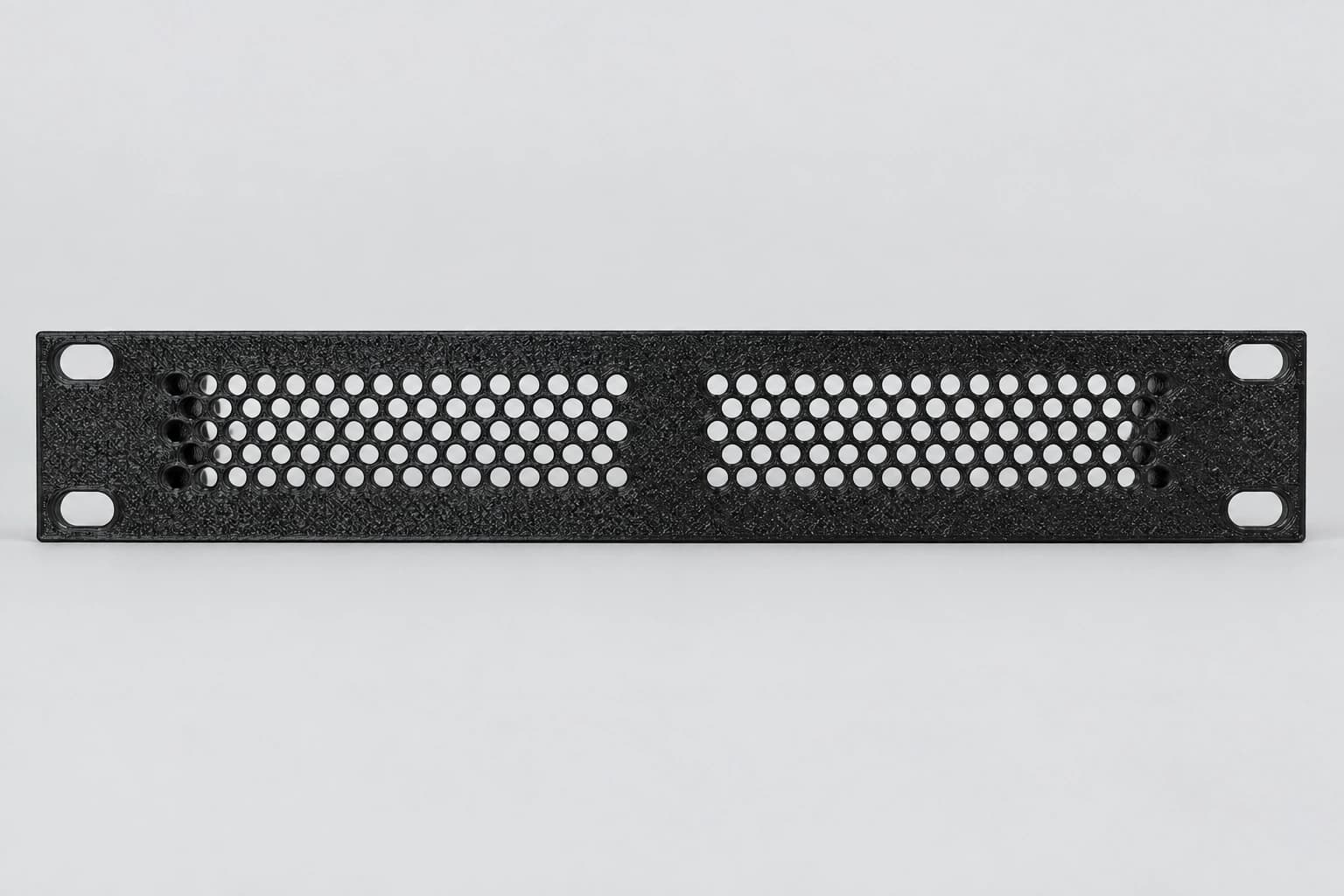

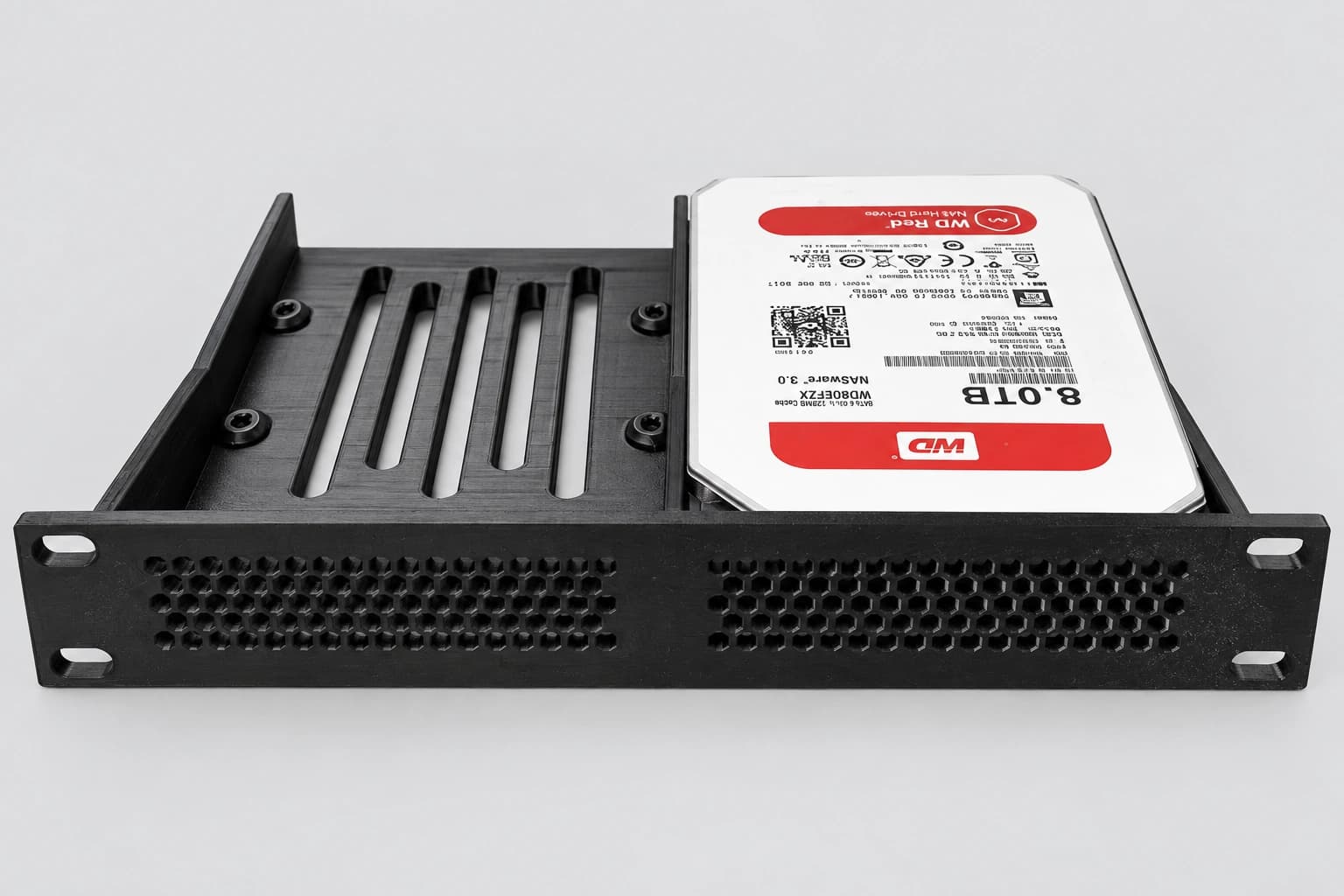

• Two 3.5-inch HDD positions in a 10-inch, 1U rack mount • One-piece shelf with reinforced side supports and center divider • Honeycomb front and ventilation slots beneath each drive • Bottom screw mounting keeps each drive secured to its tray • Printed shelf dimensions: 254 × 148 × 43 mm (width × depth × height) • Designed for bare drives up to 101.85 × 147 × 26.11 mm Includes one physical 3D-printed shelf in black PETG. Hard drives, drive screws, rack screws, cage nuts, SATA cables and rack are not included. Installed-drive photos show use only. INSTALLATION Install drives from above and fasten from underneath before fitting the shelf to the rack. Use four matching bottom mounting positions per drive. Required drive screws: #6-32 UNC × 3/16-inch plain pan head, without added washers (not included). Do not use 1/4-inch screws: they extend too far through this shelf. Check your drive manufacturer's insertion limits and confirm the drive sits flat before gently tightening by hand. Use all four rack mounting positions and leave room behind the shelf for connectors and cable bends. For 10-inch equipment racks, not 19-inch rack spacing. This is a fixed shelf, not a hot-swap enclosure; no electronics or backplane are supplied. Provide airflow suitable for your drives. Small layer lines and surface variations are normal with 3D-printed parts. Printed by 3DStore.ai. Shipping is calculated at checkout.
