TP-Link TL-SG108S-M2 - 10 Inch Rack Mount

Give your TP-Link TL-SG108S-M2 switch a dedicated place in a compact 10-inch rack. This black PETG 1U mount has a reinforced ventilated cradle, side guides and rear stops. Choose None, Left, Right or Both keystone ports at the same price.

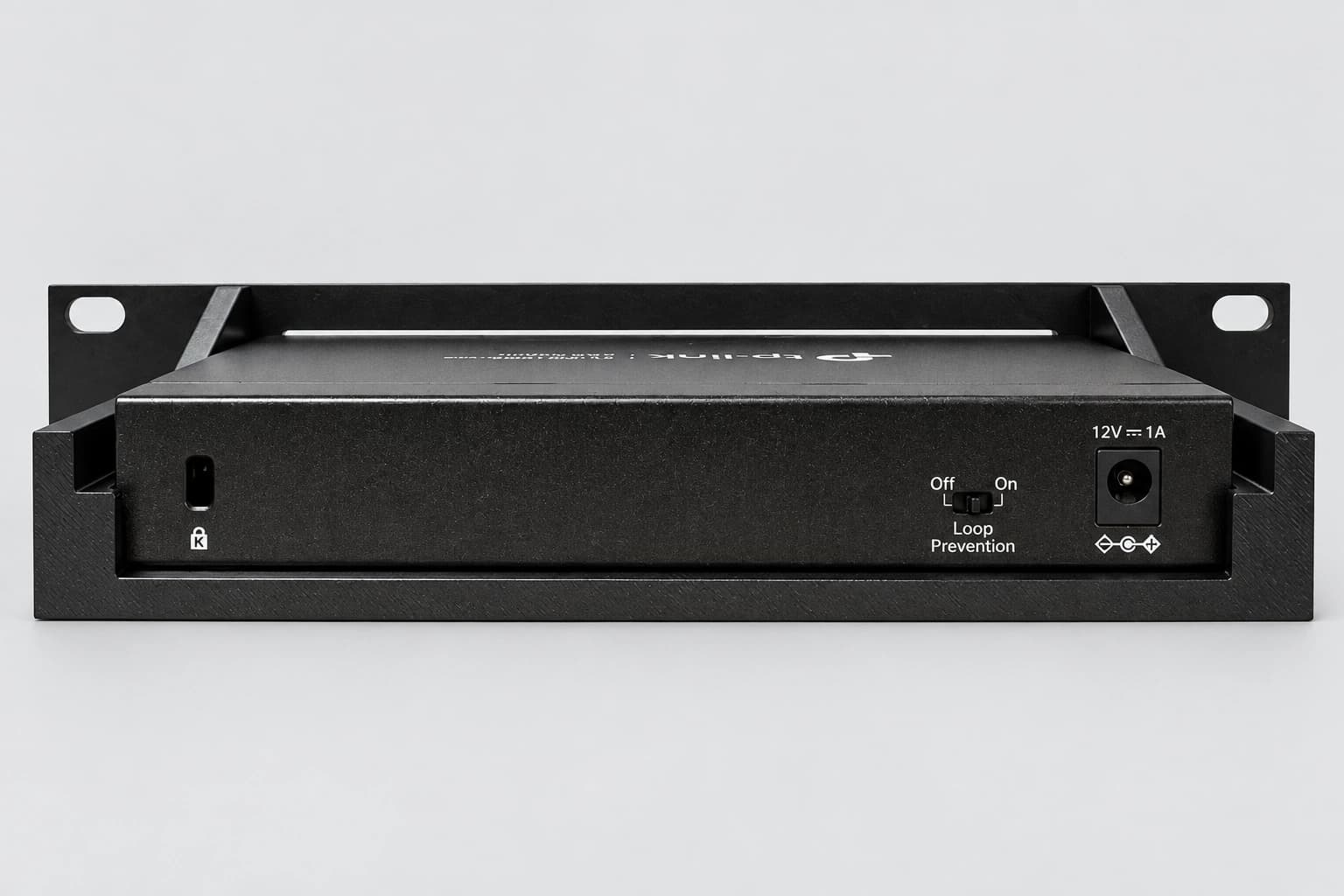

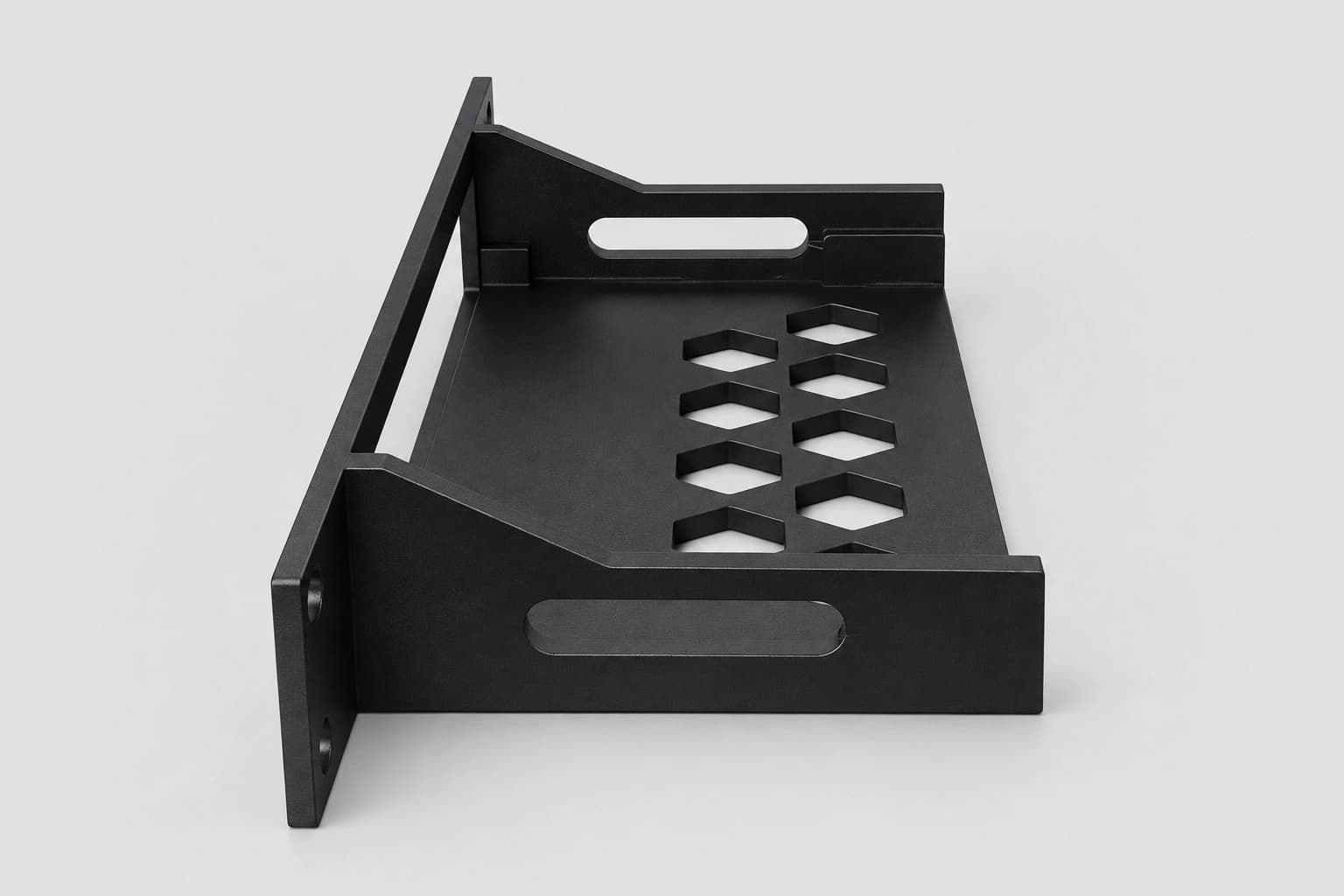

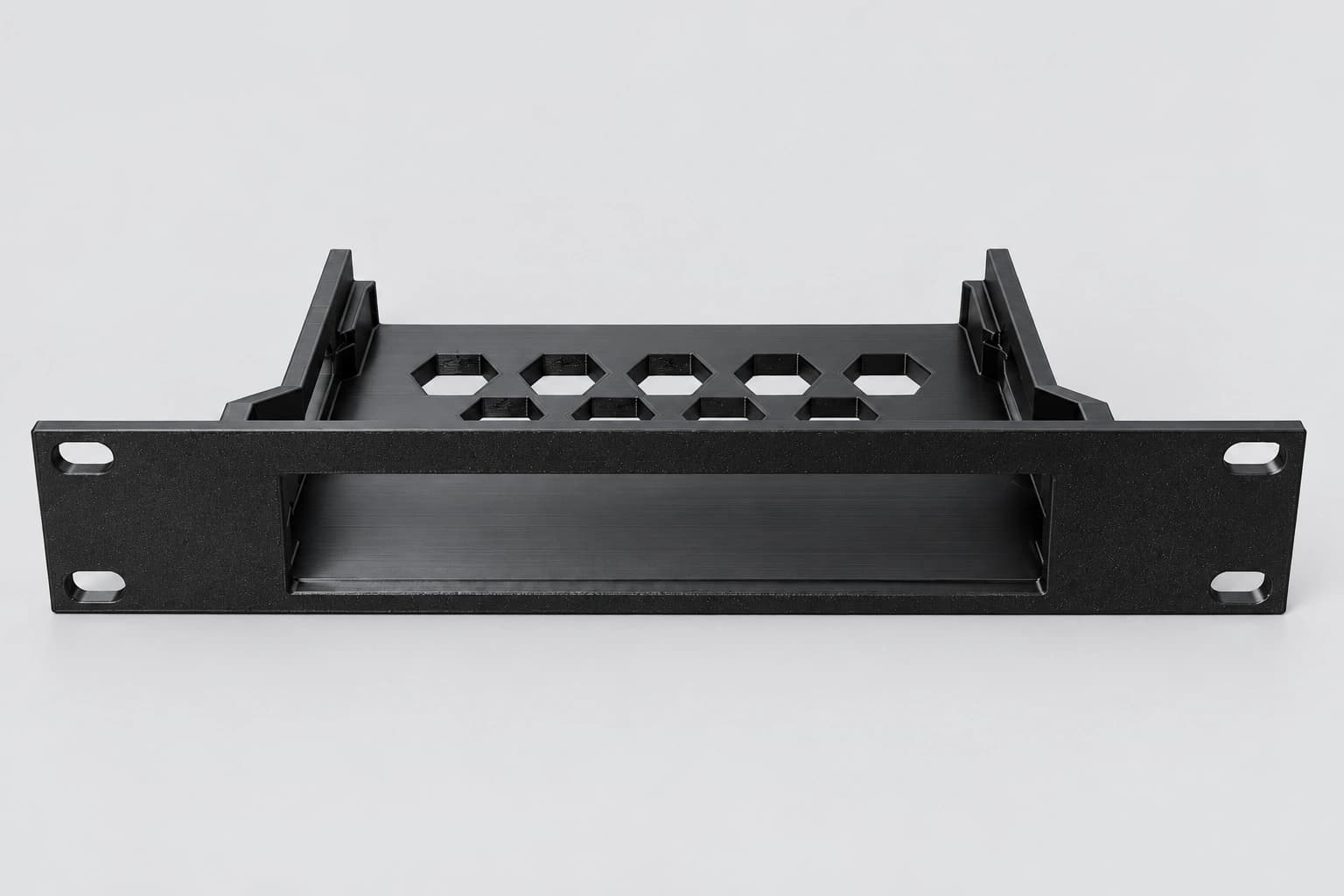

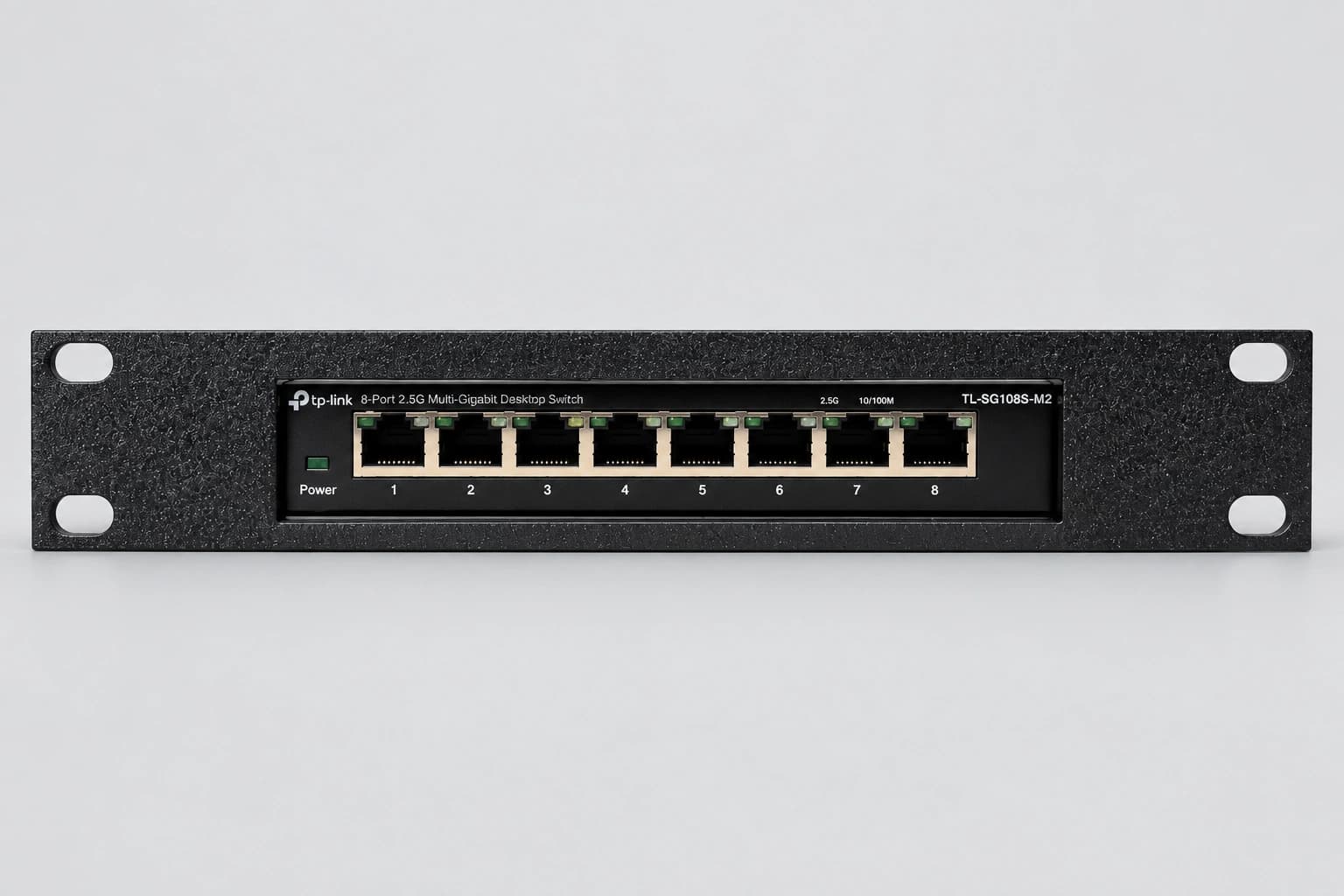

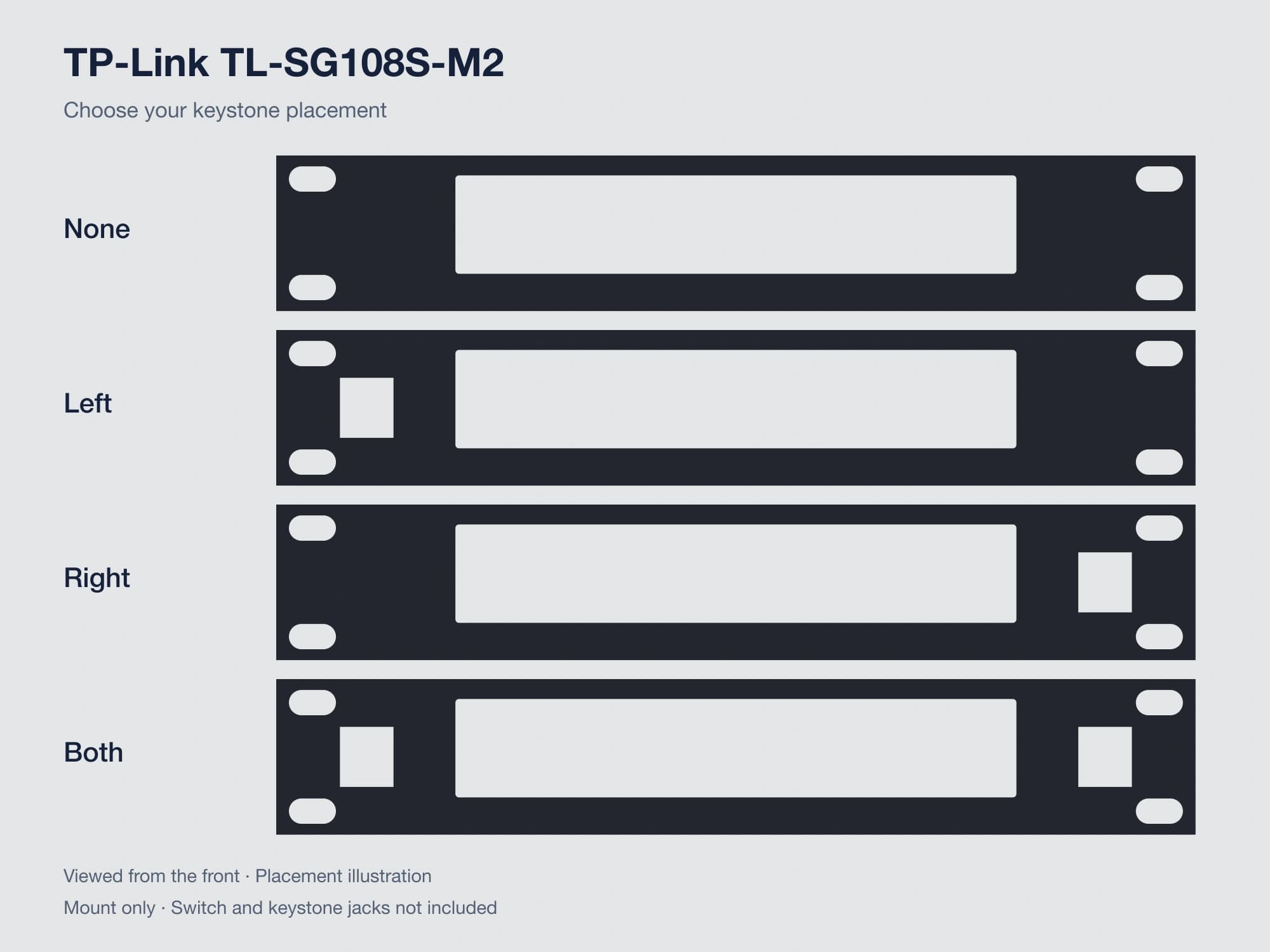

KEYSTONE PLACEMENT Viewed from the front: • None — no keystone ports • Left — one keystone port on the left • Right — one keystone port on the right • Both — one keystone port on each side Keystone jacks/couplers are NOT included. The photos show the None configuration; the placement illustration shows all four choices. COMPATIBILITY Designed for the TP-Link TL-SG108S-M2 8-port 2.5G switch shown in the photos, with the 158 × 101 × 25.4 mm enclosure. Check the full model name before ordering; other SG108 models are not interchangeable. For 10-inch rack spacing, not standard 19-inch racks. DETAILS • One-piece, black 3D-printed PETG mount • 1U faceplate with four rack mounting slots • Reinforced 6 mm cradle floor with hexagonal ventilation holes • Open top, side ventilation and rear access for power and controls • Rear stops help limit backward movement • Nominal printed size: 254 × 110.1 × 43 mm (W × D × H) INSTALLATION Lower the switch into the open-top cradle, with the Ethernet ports facing the front. Check that it sits flat without force, then secure the mount using all four rack mounting positions. Leave space for cable bends, keep vents clear and support the power supply and cable bundles separately. Intended for stationary rack use. MOUNT ONLY Includes one physical printed rack mount in your selected configuration. The switch, keystone jacks/couplers, rack screws, cage nuts, power supply, cables and equipment rack are not included. This is not a digital download. Small layer lines and surface variations are normal with 3D-printed parts. Designed and printed by 3DStore.ai. Independent third-party accessory; not manufactured by TP-Link.
