Rack systems

0.5U Panel Bundle for 10-Inch Racks — 3 PETG Panels

Finish the small gaps in your 10-inch rack with three matching 0.5U panels. Every bundle includes one solid blank, one honeycomb vented panel and one cable pass-through panel, all in your choice of Black or White PETG. $14.99 per three-panel bundle; shipping is charged separately.

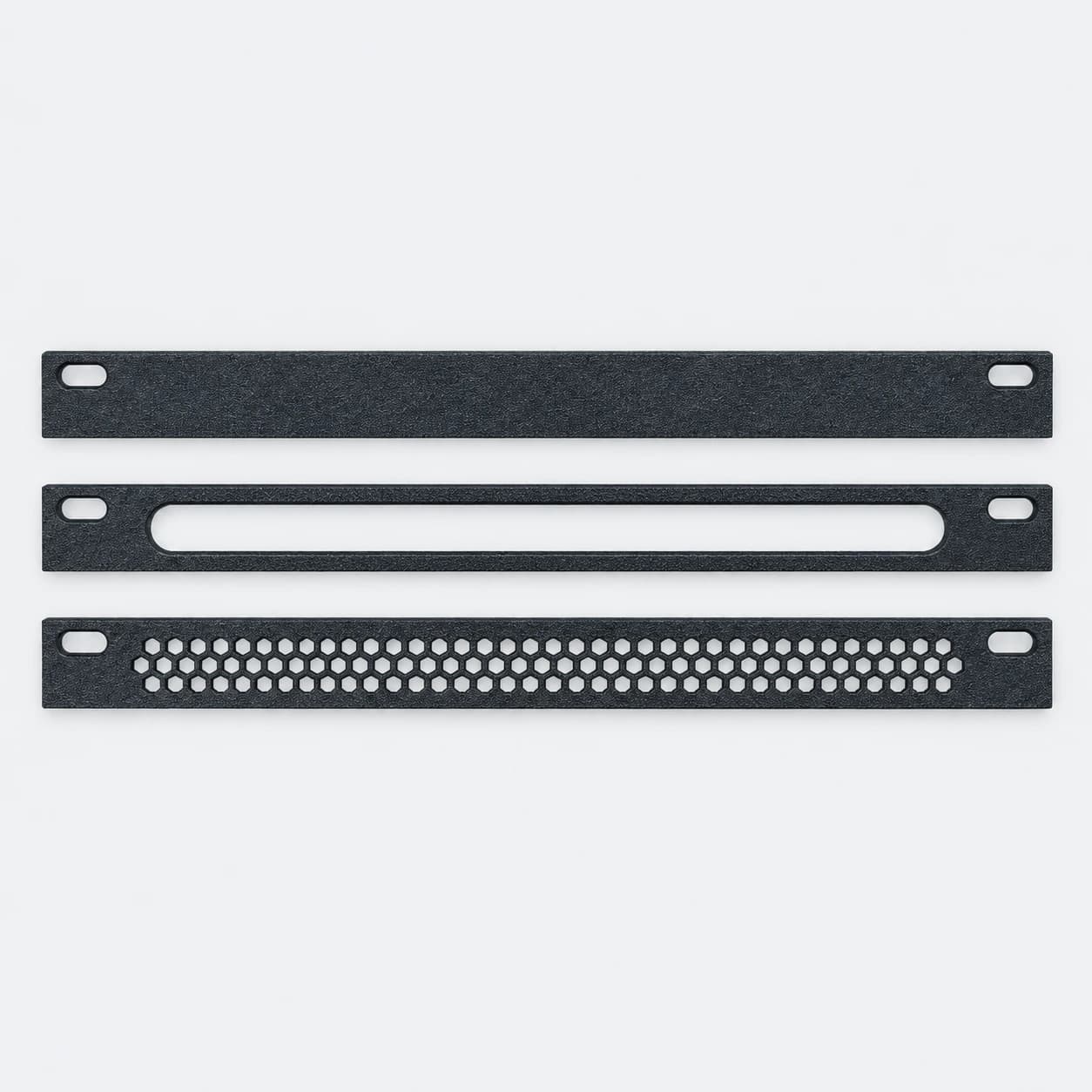

THREE PANELS INCLUDED • Solid — cover an unused half-height gap with a clean front. • Vented — a honeycomb opening pattern for passive ventilation. • Cable pass-through — a long rounded opening for routing cables through the rack face. SIZE & FIT • For 10-inch equipment racks with standard 1U vertical hole spacing. • Each panel is nominal 0.5U; design dimensions are 254 × 21.5 × 3 mm (width × height × depth), approximately 10 × 0.85 × 0.12 inches. • Two horizontal slotted mounting holes per panel. • Cable opening: 200 × 13 mm. Check your connector and boot dimensions before ordering. • Physical PETG panels, not digital files or metal rack panels. INSTALLATION The mounting slots are offset toward one long edge. For the lower half of a rack unit, place the slots nearer the bottom; rotate the panel 180° in its own plane for the upper half. Align with the appropriate holes in your rack rails, start both screws by hand and tighten gently. Use hardware compatible with your rack's threads and the 3 mm panel thickness. For 10-inch rack spacing, not standard 19-inch racks. These panels cover gaps and route cables; they are not equipment shelves. Support cable bundles separately and check that connector bodies can pass through the 13 mm-high opening. WHAT YOU RECEIVE Three physical 3D-printed panels: one solid, one vented and one cable pass-through. All three come in the selected color. Photos show Black; White is also available. Rack screws, cage nuts, cables, equipment and rack are not included. Small layer lines and surface variations are normal with 3D-printed PETG. Printed by 3DStore.ai.
