Comet X (GL-RM4PE) Quad-Port Remote KVM Rack Mount — 10 Inch

Give your GL.iNet Comet X (GL-RM4PE) a dedicated place in your 10-inch rack with this ventilated PETG cradle. Choose Black or White. One physical rack mount is included; the KVM shown in the photos is not included.

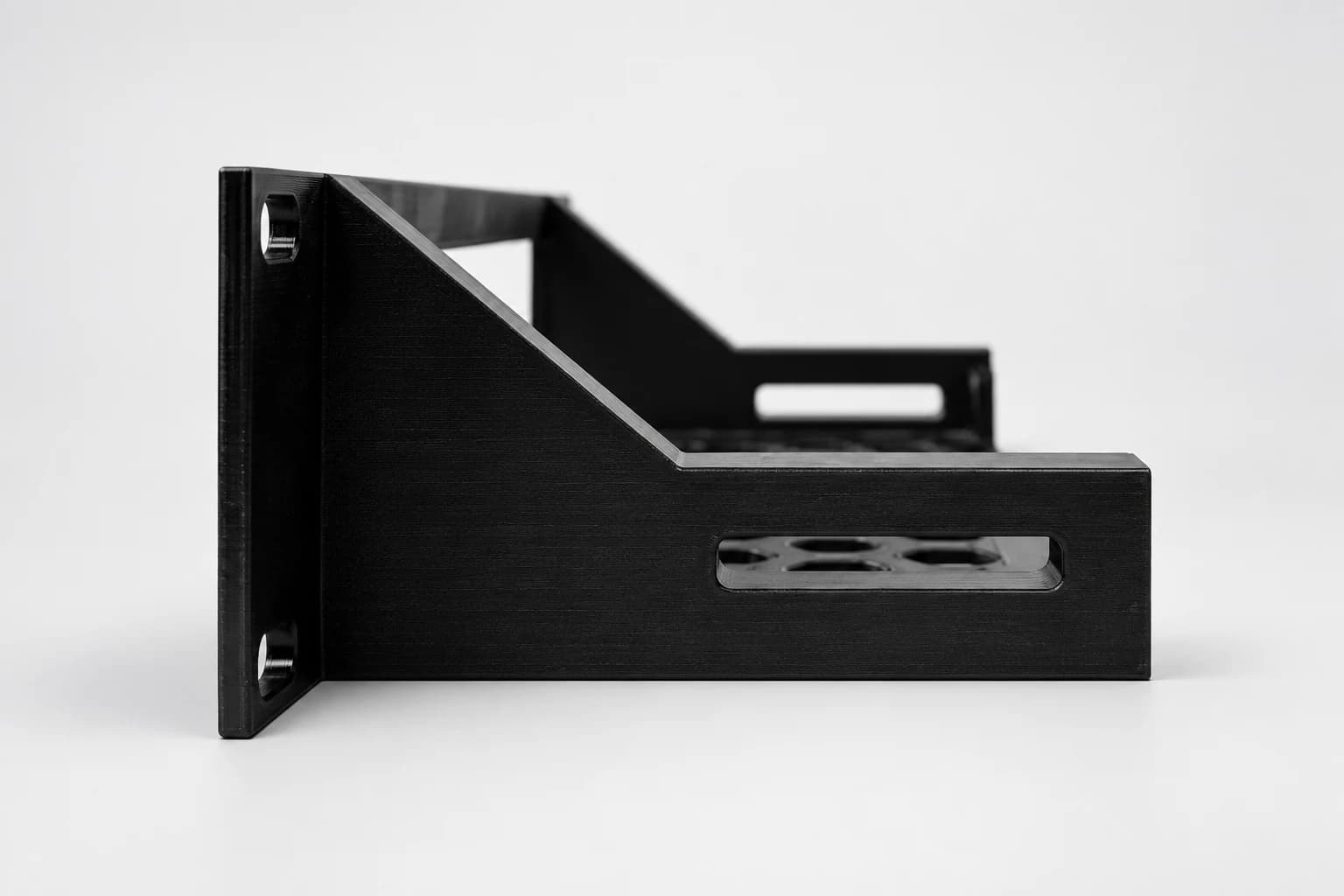

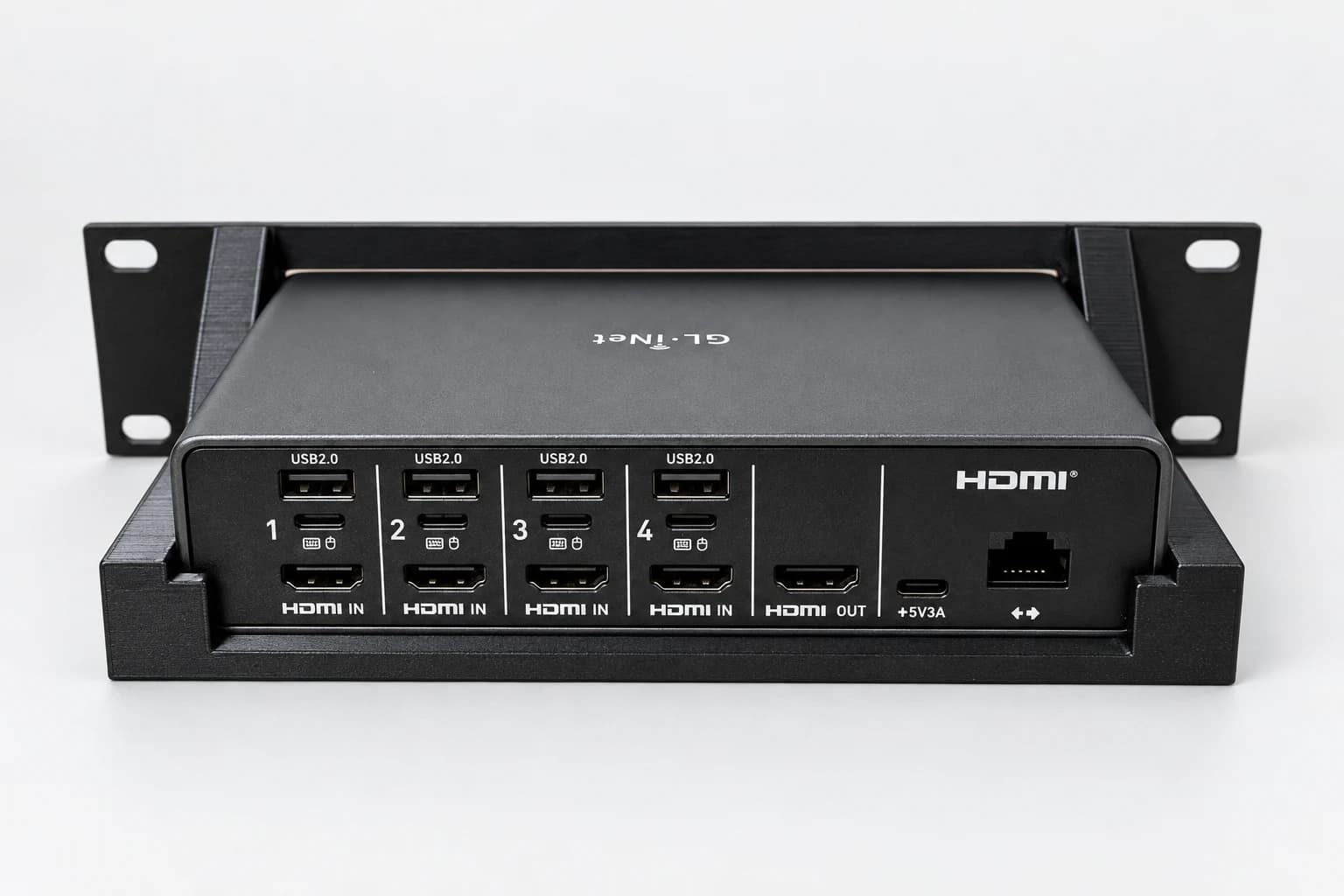

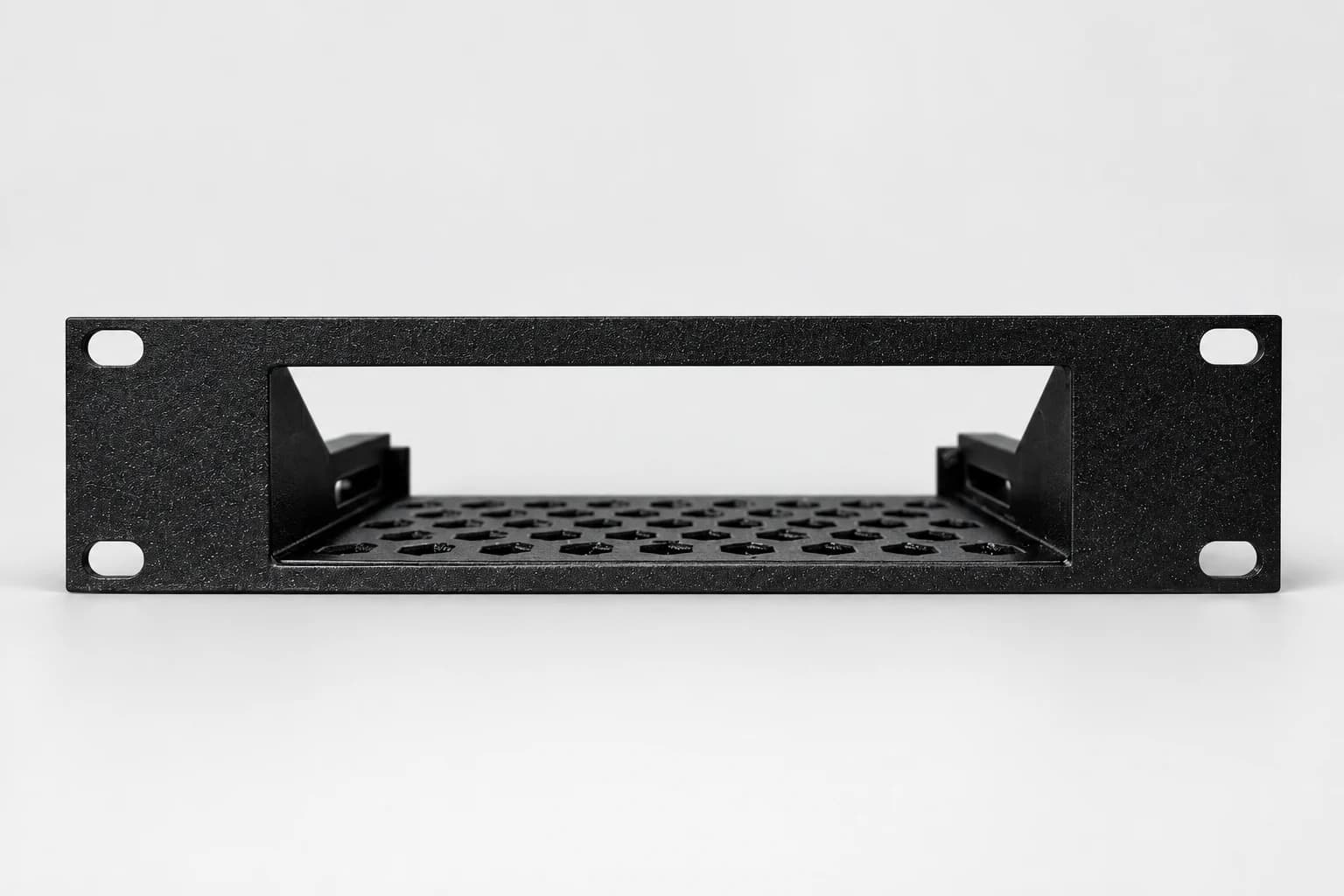

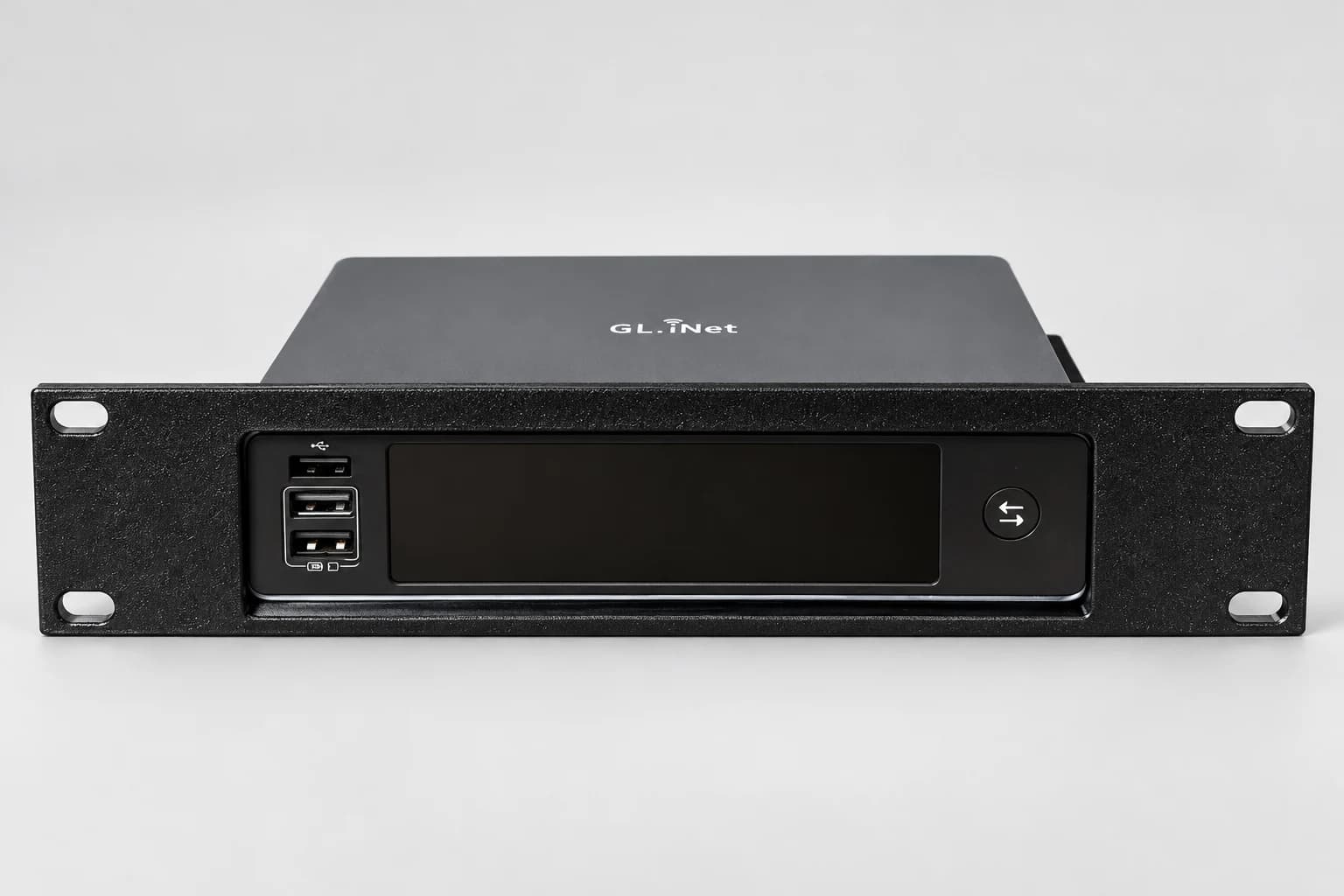

DESIGNED FOR COMET X • For the GL.iNet Comet X GL-RM4PE quad-port remote KVM. • Front opening keeps the touchscreen, USB ports and switching button accessible. • Open rear provides access to the HDMI, USB, Ethernet and power connections. • Honeycomb tray and side openings provide passive ventilation. • Flat 6 mm tray supports the device, with side braces and upright rear stops. SIZE & RACK FIT • Overall mount: 254 × 98 × 57.15 mm (width × depth × height), approximately 10 × 3.86 × 2.25 inches. • For 10-inch racks, not 19-inch rack spacing. • The face is 57.15 mm high. It is taller than 1U; allow sufficient vertical clearance around neighboring equipment. • Four slotted rack mounting holes and 3 mm rack ears. Use screws suitable for your rack threads and this mounting thickness. INSTALLATION Remove the Comet X's factory metal rack ears if fitted. Lower the device into the cradle from above, with its screen facing the front opening. No screws into the KVM enclosure are required. Mount to your rack using compatible rack hardware and tighten gently. Leave room above for lift-out removal and behind the device for cable bends and connector access. Support cables separately and keep ventilation clear. The cradle is intended for a stationary, upright rack. It is not a locking enclosure or a transport restraint. Compatibility is specific to GL-RM4PE; other Comet models use different enclosures. WHAT YOU RECEIVE One 3D-printed PETG rack mount in your selected Black or White color. Photos show Black. The GL.iNet Comet X, rack screws, cage nuts, cables and equipment rack are not included. This is a physical product, not a digital file. Small layer lines and surface variations are normal with 3D-printed PETG. Made by 3DStore.ai. Independent accessory; not manufactured or endorsed by GL.iNet.
